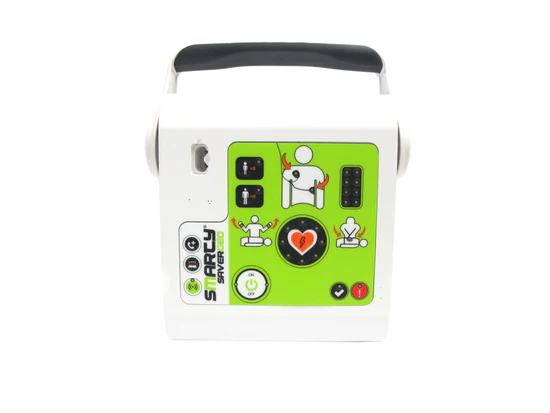

AED Saver Smarty

AED Saver Smarty

Regular price R 21,359.94 ZAR (Excl. VAT)
Regular price Sale price R 21,359.94 ZAR (Excl. VAT)
Sale Sold out
Shipping calculated at checkout.

AED Saver Smarty

Description:

  • The Smarty Saver Is Very
    Affordable And Easy To Use.
  • Reliable and Durable, It Can
    Be Easily Operated By
    Anyone

DEFIBRILLATOR

  • Model: Code SM1-B1001: Semi-Automatic
  • Code SM2-B1002: Fully Automatic
  • Maximal energy: 200J (nominal)
  • Waveform: Biphasic truncated exponential (BTE)
    automatically adapts according to
    patient's impedance.
  • Discharge protocol: Adult: incremental
    first shock 150J - subsequent 200J
    Paediatric: fixed 50J.
  • Charging time from
    shock alert*: IEC60601-2-4
    ≤ 9 sec with shock at 150J
    ≤ 12 sec with shock at 200J
  • Analysis time: IEC/EN 60601-2-4
    from 4 to 15 seconds
  • Impedance range: 20-200 Ohms
  • Sensitivity: 97% (IEC/EN 60601-2-4)
  • Specificity: 99% (IEC/EN 60601-2-4)
  • Controls:
    Semi-automatic model 4 buttons: ON/OFF, shock delivery,
    patient selection (adult/child)
  • Fully Automatic model 3 buttons: ON/OFF, patient selection
    (adult/child)
  • Light indicators: - Device status: 2 LEDs red /green
    - PADs placement: 2 red LEDs
    - Do not touch the patient: 2 red LEDs
    - Touch the patient: 1 green LED
    - Adult patient: 1 green LED
    - Paediatric patient: 1 green LED
    - ON/OFF button: 2 green LEDs
    - Shock button: 8 red LEDs
  • Upgradeable: Through USB cable
    External memory card

PHYSICAL:

  • Size: 200x213x71mm (folded handle)
    257x213x71mm (open handle
  • Weight: 1,56 Kg (with battery and PADs)

EVENT RECORDING:

  • Optional external
    memory: Micro uSD/SDHC card up to 32GB
  • Stored data: “AED1LOG.txt”: text file with
    detailed report of the activities of
    self-test and power-ups
    “AEDFILE.aed”: ECG trace, rescue
    events, voices and background audio
  • “AEDFILE.aed”review: Through data manager software
    “Saver View Express“

Defibrillation Pads:

  • Type: Code SMT-C2001: Disposable , Universal, Pre-Gelled, Preconnected Code SMT-C2002: Disposable, Univeral , Pre-Gelled, Preconnected , Face-to-Face

Dimensions:

  • Total surface 136cm²; Active Surface 94cm²; 120cm Cable Length (External To The Packaging)

Shelf Life:

  • 24-30 Months As Indicated On The Packaging .

Battery:

  • Type:  Code SMT-C14031: Disposable Battery 8 Cells Li-MnO2
  • Voltage Capacity:  12VDC-3000mAh
  • Atonomy: Up To 200 Complete Rescue Cycles (200J Shocks + CPR); Up To 36 Hours Of Continuous ECG Analysis*
  • Stand By Life:  Up To 3 Years With a Battery Insertion Test and Daily Self-Test without Any Turning On The AED*
  • *Performance Refferred To New Batteries Stored At a Temrepture Of 20° C And Relative Humidity 45% Without Condensation.

Environmental Specifications:

  • Operating Tempreture:   0°C to 45°C (32°F to 113°F)
  • Storing/Shipping Tempreture: -40°C to 70°C (-40°F to 158°F)
  • Humidity: 10% to 95% Relative Humidity non condensing.
  • Sealing(IP Protection): IEC/EN 60529: Class IP56
  • Shock/Drop Abuse Endurance: IEC/EN 60601-1 Clause 21
  • Electrostatic Discharges: IEC/EN 6100-4-2
  • Electromagnetic Compatibility: IEC/EN 60601-1-2:2015
  • Protection From Defibrillation: IEC/EN 60601-1; Device Internally Powered , Type BF Directive 93/42/CEE
  • Classification: Directive 93/42/CEE Amd 2007/47/CE: Class IIB, Annex IX Rule 9



Our lead times are for delivery is 5 to 7 working days excluding weekends, public holiday’s & shipping time with our courier. Please note due to unforseen road or air freight delays parecles can be delayed by a few days.
