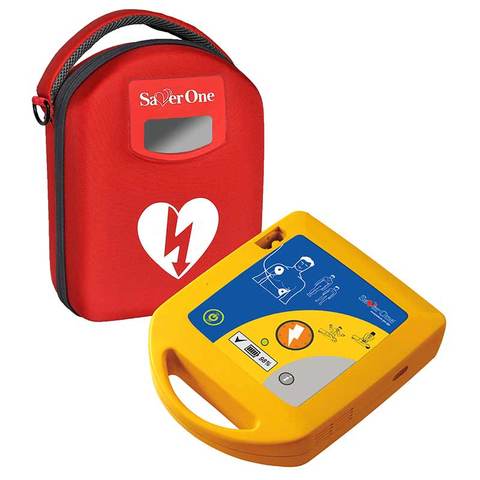

AED Saver1 (Fully auto AED 200J with LCD/CarryCase/Disp Battery)

AED Saver1 (Fully auto AED 200J with LCD/CarryCase/Disp Battery)

Features:

• Efficient and effective e~cube Biphasic technology (BTE Type)
• Manual and AED operation
• Defibrillation using paddles, pads or internal paddles
• Non-invasive pacing mode

Specifications:

• Model:  CU-HD1
• Dimensions: 318mm(W) x 208mm (D) x 355mm (H)
• Display: LCD Dimensions: 7 inch Diagonal (152mm * 91mm): 7 inch Diagonal (152mm * 91mm)
• TFT Colour, Resolution: 800 * 480 pixels
• Waveform: Biphasic Truncated Exponential (e~cube)
• Charge Time: AC Power: Less than 5 seconds to 200 Joules
• Battery: Less than 7 seconds to 200 Joules
• Output Energy: 200J
• Shock Delivery: Via multifunction defib electrode pads
• AED Develp Guideline: Shock advisory sensitivity and Specificity meet AAMI DF-80 guidelines
• Voice & Text Prompts: Guide the user through the protocol Via Multifunction defib
• electrode pads.
• Out Put Energy: 1~10J,15J, 20J, 30J, 50J, 70J, 100J, 120J, 150J, 170J, 200J
• Shock Delivery: External paddle (with Pediatric), Internal paddle
• Synchronous Cardioversion
• Printer: Continuous ECG Strip: Real-Time (8 seconds delay)
• Auto Printing: Recorder can be configured to print marked event, charge, shock and alarms, Printing Speed: 25mm/s
• Paper: 50mm Width / 40 Diameters
• Automatic Self-Test: Power on Self-Test
• Run Time Self-Test
• Manual Self-Test
• Periodic Self-Test (Daily / Weekly / Monthly)
• Power Source: External Battery Pack: Lithium Polymer
• Type: 14.8V 3.1Ah (Rechargeable)
• Capacity: When new, minimum of 100 shock deliveries (200J)
• AC Power Module
• Output: 18V, 5A
• ECG Monitoring
• Heart Rate Display:
• ECG Size:
• Heart Rate / Arrhythmia Alarm:
• 3-Lead Cable, I, II, III
• 5-Lead Cable, I, II, III, aVR, aVL, aVF or V
• 10-Lead Cable, I, II, III, aVR, aVL, aVF or V1, V2, V3, V4, V5, V6
• (Display View: All 12-Lead ECG waves display simultaneously)
• Lead Fault: “Lead Fault” message and dashed line display if an electrode or lead wire becomes disconnected
• 30 to 300bpm (±3bpm)
• 5, 10, 20mm/mV and Auto-gain
• Heart Rate/Arrhythmia Alarm: Hr, Asystole, VF, VT
• Noninvasive Pacing:
• Waveform: Monophasic Truncated Exponential
• Mode: Demand and Fixed Mode
• Amplitude Accuracy: 0 ~ 200mA (± 5mA)
• 20ms (± 1.5%)
• Pulse Width: 20ms (± 1.5%)
• Pulse Rate: 30 ~ 180ppm (± 1.5%)
• Refractory Period: 340msec (30 to 80ppm), 240msec (90 to 180ppm)
• SPO2 Pulse Oximetry: Saturation: 70 ~100% (±3digits)
• Pulse Rate: 20 ~250bpm (±3bpm)
• Perfusion: 0.2%
• Module Manufacturer: Nellcor
• SPO2 Alarm: Less than Minimum setting rate
• Over than Maximum setting rate
• Data Storage: External Memory Card: SD Card (ECG data, Event, Voice)

Standard Accessories:

• External Paddles
• Pads – 1 set adult
• Pads Adapter
• 3 or 12 Lead ECG Cable
• Smart Card & Reader
• SP02 Finger Probe with extension
• cable – Adult
• 1 x pack of disposable electrodes
• 1 x roll of printing paper
• Battery Pack
• Carrying Case
• User Manual

Optional Accessories

• 5 Lead ECG Cable
• 10 Lead ECG Cable
• Bed Hanger
• Pacer and SPO2 Module
• Car Cigar Lighter Jack
• SPO2 Finger Probe (Standard adult probe with VH1, VH2 and VH3 Model)
• SPO2 Extension Cable (Standard Adult with VH1, VH2 and VH3 Model)
